Komar Auger-Pak™ EM Wood Series

  • Safest, most cost-effective industrial wood waste compactors, and shredding solutions
  • Substantially reduces labor and transportation costs industrial wood waste compactors
  • Shreds and compacts in one machine
  • Eliminates the need for dangerous manual breakdown
  • Safely handles tramp metal such as nails and bolts
  • Low noise and dust
“The machine freed-up dock space improved cleanliness in the plant, and there is very little maintenance.”
– Bob Langham, Senior Packaging Engineer Pilkington
EM Wood Series auger compactor
Industry leaders choose Komar for wood waste solutions
Industry leaders choose Komar for wood waste solutions

Series Models

EM-15W model size comparisonEM-40W model size comparisonEM-60W model size comparisonHA-100W model size comparison

EM-15W

Komar EM-15W auger compactor
EM-15W Processing Specifications
Horsepower 15
Tons / Hr 2
Standard Pallets / Charge 2
Largest Pallet 42″ x 48″
Largest Crate 36″ x 36″ x 60″
Largest Spool 36″
EM-15W Physical Specifications
Footprint (L x W x H) 89.6″ x 72″ x 60.2″
Chamber Size (L x W) 60″ x 59.25″
Weight (lbs) * 10,625
rpm 7.42
torque (ft-lbs) 10,624
Systems that are hand or conveyor fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is very important to achieving similar levels of compaction.
*The weight includes the entire Auger-Pak™ system with a standard plugin hopper

EM-40W

Komar EM-40W auger compactor
EM-40W Processing Specifications
Horsepower 40
Tons / Hr 5
Standard Pallets / Charge 10
Largest Pallet 48″ x 96″
Largest Crate 48″ x 48″ x 48″
Largest Spool 48″
EM-40W Physical Specifications
Footprint (L x W x H) 115.75″ x 91.75″ x 68.5″
Chamber Size (L x W) 80″ x 75.25″
Weight (lbs) * 19,235
rpm 7.42
torque (ft-lbs) 28,330.79
Systems that are hand or conveyor fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is very important to achieving similar levels of compaction.
*The weight includes the entire Auger-Pak™ system with a standard plugin hopper
checkbox Reduced hauls by 86%
checkbox Improved plant cleanliness
checkbox Reduced maintenance costs
Equipment: Auger-Pak™ EM-40W Site: Urbancrest, Ohio
equipment installed at Pilkington
Bob Langham from Pilkington“Our facility is a large distribution center for automotive glass. The glass arrives in large wooden crates. Before we purchased the auger, we were loading our empty crates into semi-trailers. We averaged about 50 loads a week.  After having the Auger installed, we reduced our loads to five  40 cu. yd. rolloffs per week.  The machine freed-up dock space, improved cleanliness, and there is very little maintenance. It’s an easy machine to run and is fascinating to watch.” – Bob Langham, Senior Packaging Engineer

EM-60W

Komar EM-60W auger compactor
EM-60W Processing Specifications
Horsepower 60
Tons / Hr 8
Standard Pallets / Charge 12
Largest Pallet 60″ x 96″
Largest Crate 48″ x 48″ x 60″
Largest Spool 60″
EM-60W Physical Specifications
Footprint (L x W x H) 128.25″ x 92″ x 65.5″
Chamber Size (L x W) 92″ x 75.25″
Weight (lbs)* 24,358
rpm 10.17
torque (ft-lbs) 30,972
Systems that are hand or conveyor fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is very important to achieving similar levels of compaction.
*The weight includes the entire Auger-Pak™ system with a standard plugin hopper

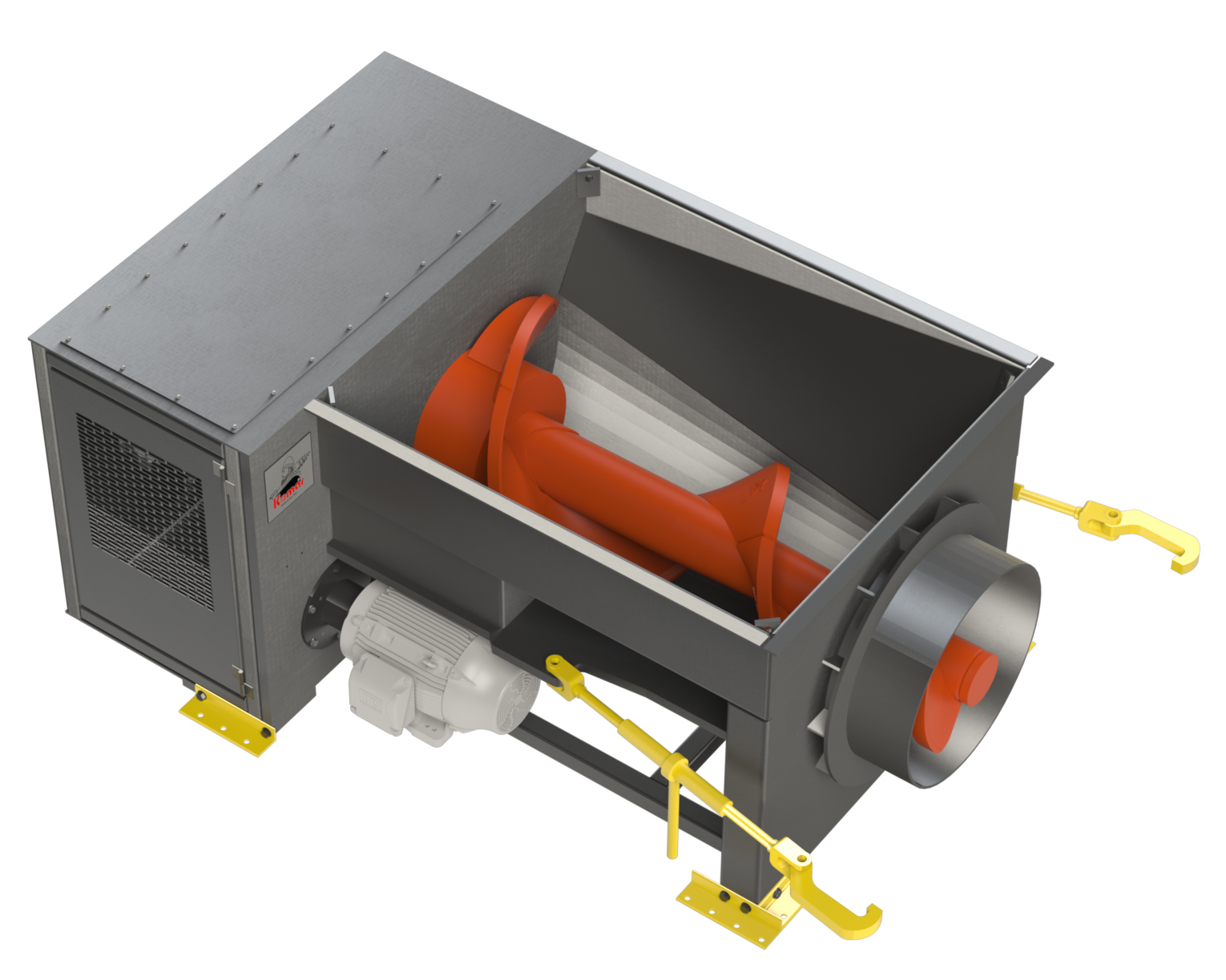

HA-100W

Komar HA-100W auger compactor
HA-100W Processing Specifications
Horsepower 100
Tons / Hr 10
Standard Pallets / Charge 12
Largest Pallet 60″ x 96″
Largest Crate 48″ x 48″ x 60″
Largest Spool 60″
HA-100W Physical Specifications
Footprint (L x W x H) 157″ x 106.25″ x 68.5″
Chamber Size (L x W) 90″ x 75″
Weight (lbs)* 25,000 lbs
rpm 15.7
torque (ft-lbs) 50,390
Systems that are hand or conveyor fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is very important to achieving similar levels of compaction.
*The weight includes the entire Auger-Pak™ system with a standard plugin hopper

Series Technology

series tech specifications

1Patented Solid Lube Bearing Support Systems

Allows for the use of the biggest and most powerful auger screws in the industry, resulting in maximum compaction force.

2Cast Steel Flights 3Tapered Solid Alloy Steel Shaft

Using the highest quality components to construct our auger screws extends service life. The mass and shape of the cast flights increases overall strength and durability, while providing more efficient material delivery to the receiving container. Our patented tapered shaft uniquely distributes forcealong the shaft, minimizing stress on the bearings and maximizing screw life.

4Teeth

All of our wood machines include teeth to help with the initial breakdown of dense material.

5Cycloidal Drive with 500% Shock Load

Don’t judge a drive strictly by the motor’s horsepower, especially when you plan to process heavy industrial materials. A high shock load rating is important in giving the compactor the ability to crush through large loads without damage to the drive.

6Worry-Free Chain and Bearing Lubrication Systems

The engineered, automatically lubricated chain, coupled with the self-lubricating bearing system cuts down on routine maintenance.

7Ratchet Binders 8Container Adapter

The auger compacts directly into a standard roll-off receiving container typically provided by your local hauler, and meets ANSI and OSHA specifications.
