Komar Dual Auger-Pak®

EMD WOOD SERIES

  • Most cost-effective solution for processing oversized wood waste
  • Substantially reduces transportation costs oversized wood waste
  • Shreds and compacts in one machine
  • Eliminates the need for dangerous manual breakdown
  • Safely handles tramp metal such as nails and bolts
  • Low noise and dust
The biggest benefit of the Komar Auger-Pak® is the reduction in hauls.  Now we can compact the equivalent of 2.5 open-tops into one roll-off container. – Mike Scalera, General Manager Davidson Surface Air
EMD wood series equipment
Industry leaders choose Komar for oversized wood waste solutions.
Industry leaders choose Komar for oversized wood waste solutions.

Series Models

EMD-80W model size comparisonEMD-180W model size comparisonEMD-6060 model size comparison

EMD-80W

Komar EMD-80W auger compactor
EMD-80W Processing Specifications
Horsepower 80
Tons / Hr 5-10
Standard Pallets / Charge 20
Largest Pallet 84″ x 144″
Largest Crate 84″ x 84″ x 144″
Largest Spool 96″
EMD-80W Physical Specifications
Footprint (L x W x H) 125.6″ x 138.4″ x 69.5″
Chamber Size (L x W) 92″ x 123.25″
Weight (lbs)* 36,453
rpm of Primary Auger 10.17
torque (ft-lbs) 30,972
Systems that are hand or conveyor-fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is essential to achieving similar compaction levels.
*The weight includes the entire Auger-Pak® system with a standard plugin hopper

checkbox Reduced hauls by 150%
checkbox Quick expected ROI
checkbox Positive buying experience
Equipment: Auger-Pak® EMD-80W Site: St. Louis, MO
equipment installed at Davidson
“The biggest benefit of the Komar Auger-Pak® is the reduction in hauls. Before buying the Komar, we were filling 30 cu. yd. open-top dumpsters. Now we can compact the equivalent of 2.5 open-tops into one roll-off container. While this machine was a big upfront investment, we expect that it will pay for itself in a few years time with the reduction in hauls. Overall, our experience working with Komar has been very positive. The sales staff are very knowledgeable and are dedicated to finding the right machine for your job.” – Mike Scalera, General Manager

EMD-180W

Komar EMD-180W auger compactor
EMD-180W Processing Specifications
Horsepower 180
Tons / Hr 10-20
Standard Pallets / Charge 20
Largest Pallet 84″ x 144″
Largest Crate 84″ x 84″ x 144″
Largest Spool 96″
EMD-180W Physical Specifications
Footprint (L x W x H) 165.5″ x 127″ x 96″
Chamber Size (L x W) 92″ x 123.25″
Weight (lbs)* 44,453
rpm of Primary Auger 20.35
torque (ft-lbs) 30,972
Systems that are hand or conveyor-fed typically achieve higher compaction levels.   When materials are fed with a tipper or self-dumping hopper, meter feeding is very important to achieving similar levels of compaction.
*The weight includes the entire Auger-Pak® system with a standard plugin hopper

EMD-6060

Komar EMD-6060 auger compactor
EMD-6060 Processing Specifications
Horsepower Auger 1 60
Horsepower Auger 2 60
Tons / hr Up to 20 depending on material density
Largest Pallet 72” x 60”
Largest Crate 72” x 60” x 60”
Largest Spool 60” x 72”
Feed type Metered, Forklift, Conveyer
Receiving container 40-50 cu. yd OR compaction trailer
Tons per compaction trailer 16 to 22 tons
EMD-6060 Physical Specifications
Footprint (L x W x H) 150-5/8” x 142” x 66-1/16”
Chamber Size (L x W) 80” x 80”
Weight (lbs)** 32,570
Rpm / Torque ( ft-lbs) Auger 1 16.3 / 19,332
Rpm / Torque ( ft-lbs) Auger 2 16.3 / 19,332
**The weight includes the entire Auger-Pak® system with a standard plugin hopper

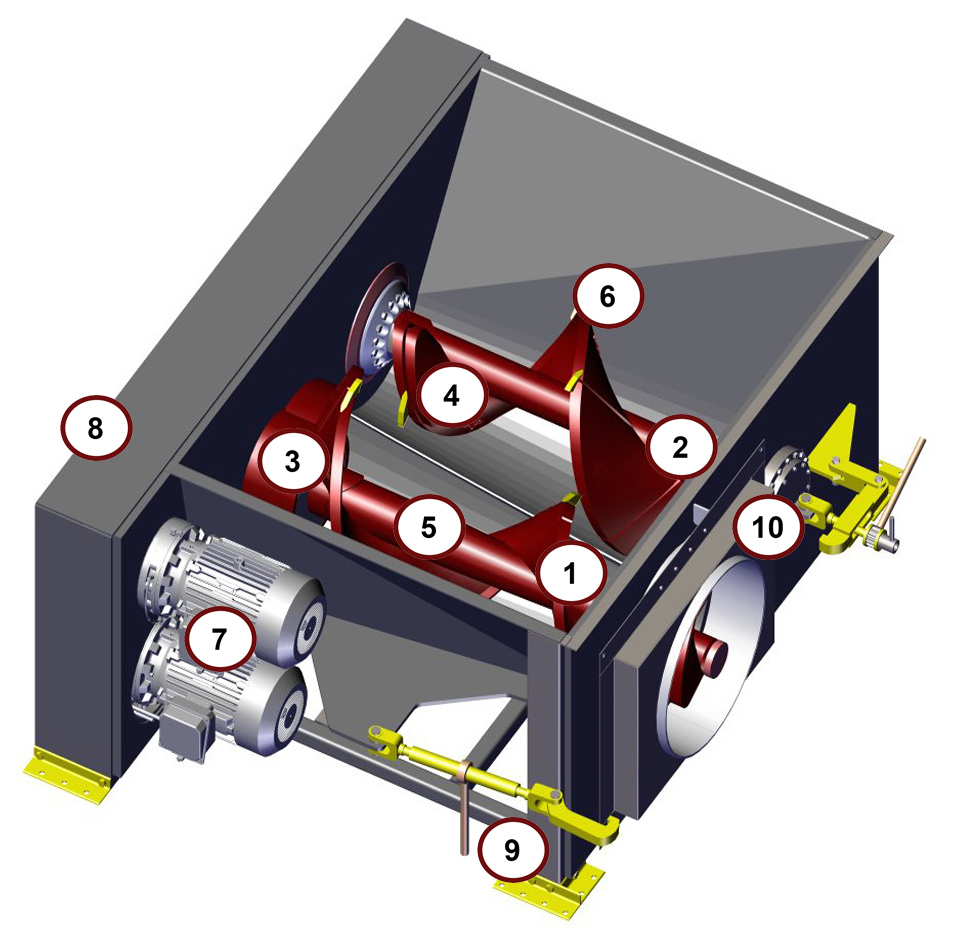

Series Technology

series tech specifications

1Compaction Auger

Breaks down and compacts waste directly into an attached receiving container.

2Process Auger

Independently controlled counter rotating screw offers powerful grinding for processing large bulky waste

3Patented Solid Lube Bearing Support Systems

Allows for the use of the biggest and most powerful auger screws in the industry, resulting in maximum compaction force.

4Cast Steel Flights 5Tapered Solid Alloy Steel Shaft

Using the highest quality components to construct our auger screws provides extended service life. The density and shape of the cast flights increases strength and durability, as well as more efficient material delivery to the receiving container. The patented, tapered shaft uniquely distributes the compaction force, maximizing bearing and shaft life.

6Auger Teeth

All of our wood machines include auger teeth to help with the initial breakdown of dense material.

7Cycloidal Drives with 500% Shock Load

Don’t judge a drive strictly by the motor’s horsepower, especially when you plan to process heavy industrial materials. A high shock load rating is vital in giving the compactor the ability to crunch through large loads.

8 Worry-Free Chain and Bearing Lubrication Systems

The engineered, automatically lubricated chain, coupled with the self-lubricating bearing system cuts down on routine maintenance.

9Ratchet Binders 10 Container Adapter

The auger compacts directly into a standard receiving container provided by your local hauler, and
meets ANSI and OSHA specifications.
