QUAD-SHAFT SHEAR SHREDDERS

Komar quad shaft shear shredders handle your waste with primary and secondary shredding capabilities. When a uniform output piece size is needed, the quad shaft shredder is the best selection.

Explore Quad Shaft Shredders

Equipment Offerings

quad-shaft 20 series shredder

Series Models
QR = Electromechanical HQ = Hydraulic

Models Chamber Size (L x W) Horsepower Range Cutter Width
Standard Minimum
QR1820 18″ x 20″ 10 to 20 1 3/8″ 3/8″
QR2424 24″ x 24″ 20 to 30 1 3/8″ 3/8″

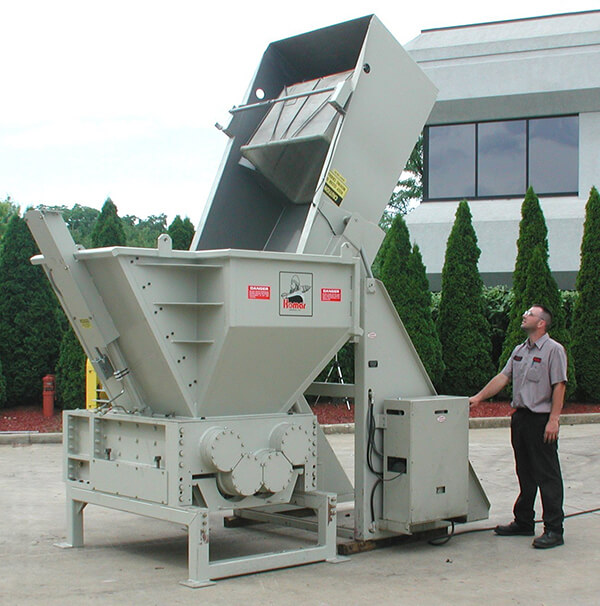

quad-shaft 30 series shredder
Series Models
QR = Electromechanical HQ = Hydraulic

Models Chamber Size (L x W) Horsepower Range Cutter Width
Standard Minimum
QR3030 30″ x 30″ 50 – 75 1.5″ .5″
QR4030 40″ x 30″ 50 – 75 1.5″ .5″
QR5030 50″ x 30″ 50 – 75 1.5″ .5″
HQ3030 30″ x 30″ 50 – 150 1.5″ 1″
HQ4030 40″ x 30″ 50 – 150 1.5″ 1″
HQ5030 50″ x 30″ 50 – 150 1.5″ 1″

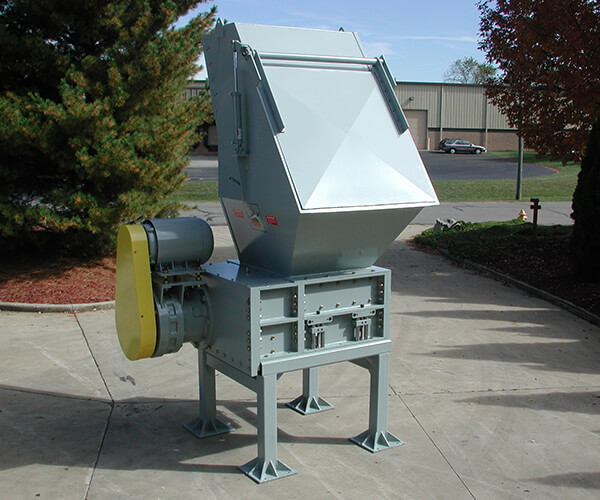

quad-shaft 40 series shredder
Series Models
QR = Electromechanical HQ = Hydraulic

Models Chamber Size (L x W) Horsepower Range Cutter Width
Standard Minimum
QR4040 40″ x 40″ 100-200 2″ 1″
QR6040 60″ x 40″ 100-200 2″ 1″
HQ4040 40″ x 40″ 100-200 2″ 1″
HQ6040 60″ x 40″ 100-200 2″ 1″
quad-shaft 48 series shredder
Series Models
QR = Electromechanical HQ = Hydraulic

Models Chamber Size (L x W) Horsepower Range Cutter Width
Standard Minimum
QR6048 60″ x 48″ 200-300 2″ 1.25″
QR7248 72″ x 48″ 200-300 2″ 1.25″
QR8448 84″ x 48″ 200-300 2″ 1.25″
HQ6048 60″ x 48″ 200-300 2″ 1.25″
HQ7248 72″ x 48″ 200-300 2″ 1.25″
HQ8448 84″ x 48″ 200-300 2″ 1.25″

Video Demos

Technology Features

+ PCLS – Pro Cutter Locking System

A major problem inherent in traditional shear-shredder technology is loosening of the cutter stacks over time.  Their conventional threaded nut system cannot apply enough force to keep the stacks tight.  This results in poor performance, reduces component life, and required frequent downtime to tighten the stacks. The Komar patented Pro Cutter Locking System, or “PCLS” solves this problem with the use of a compact progressive bolt and integrated bearing system.  This system produces 900% more force than the conventional locking nut system, providing optimal performance and requiring far less maintenance.

+ ESP – Extreme Shock Protection

The Komar “ESP” feature provides extreme shock protection for the electromechanical drive shredders by incorporating a friction clutch between the electric motor and shredder drive to protect the shredder drive in case a non-shreddable item enters the process chamber.

+ Drive Types

Komar offers electromechanical, hydromechanical, and direct hydrostatic drives.  This variety allows us to prescribe the right drive for your duty cycle and severity of application.

+ Bearing and Seal Protection

Komar utilizes a multi-layered system that insulates the bearings from the material processing in the cutting chamber. This feature significantly increases the life of the bearings and uptime of the shredder. The system utilizes a false wall chamber with an air gap followed by a set of steel inter-meshing labyrinth shields and composite lip seals. Grease from the Automatic Lubrication System is purged through the bearings and then by the seals to repel contamination away from the bearings.

+ Auto Reverse and Ram Assist

All Komar shredders come with auto-reverse to protect the shredder in the case of a non-shreddable item entering the cutting chamber.  The optional Ram Assist can be added for tamping larger items and for assisting the cutters in grabbing larger pieces or odd shapes.
